Badge Machine Tool - Removes Jammed Parts (Chisel)

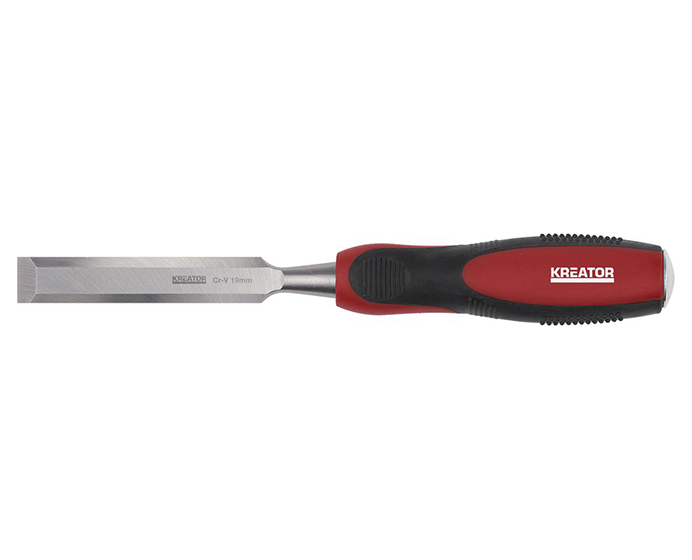

Easily remove jammed parts from your badge machine with this tool. If by mistake two metal fronts end up in your badge machine, it can "lock up" and become difficult to open again. This chisel is the perfect tool to solve the problem. Its shape and size make it ideal for the task, as it can easily get between the jammed top and bottom dies WITHOUT scratching the insides of the dies, and risking damage to them.

Productiontype with shipping

You have selected:

Loading

Uploaded:

Your file

Designed:

Your file

Total price without VAT:

Add to basket

Add to basket just press the button.

Badge Machine Tool - Removes Jammed Parts (Chisel)

With this tool, you can easily remove jammed parts from your badge machine yourself. Most problems that can arise with your badge machine are due to accidentally inserting more than one badge front into the machine.

How do I know if an extra front has gotten stuck?

When you try to press your badge together with the handle, you will experience a lot more resistance than usual. Stop immediately! - This is a sign that too many parts have been placed in the machine! If the badge machine has already 'locked up' and an extra badge part has gotten stuck, this tool can be used to open the machine again and remove the jammed parts.

How to separate the matrices and remove jammed parts from your badge machine

Follow the guide for your type of badge machine below:

MULTI badge machine

If the top and bottom matrices have locked together, they can be separated by inserting the tool into the joint where the top and bottom matrix meet, and gently tapping down with a nylon hammer. It's important not to scratch the inside of the matrices, as this could damage them! The matrices will separate as soon as they are a few millimeters apart. There may still be parts stuck in the top matrix that need to be removed. Remove the top matrix from the MULTI badge machine by holding it with a firm grip and pulling straight down (it is held in place with magnets). You can use one finger on each side to push the matrix away from the badge machine body. Important: The top matrix must not be rotated/turned, as this could loosen the parts in the top matrix. Use a screw, pliers, and hammer. You need to hammer the screw in precisely in the center of the top matrix, where there is a hole about 10mm (hidden under the badge parts). You should hammer the screw in no more than 10mm. If you hit this spot, you won't damage the machine. Hammer the screw in, and use the pliers to pull the screw and parts out of the top matrix. Do not hammer deep! If you don't hit precisely in this hole, you could risk damaging the matrix. jammed parts in top matrix

PRO badge machine

If the top and bottom matrices are stuck together, the bottom matrix will be lifted about 5-10mm from the swing plate (see picture). distance between matrices
Separate them by hitting the black swing plate moderately hard. The parts are more stuck on one side, so change the place where you hammer. If a lot of force has been used to compress the parts together, it may be necessary to submit the machine to Badgeland to separate the top and bottom matrices without damaging the machine.
There may still be parts stuck in the top matrix. Turn the top matrix so the small black, vertical metal pin fits into the hole in the black metal plate above the top matrix as shown in the picture below. badge machine picture Push/pull the outer metal ring in the top matrix upwards, so the small, black metal pin hits the hole as shown in the picture below.  top matrix ring This empties the top matrix of jammed fronts. Place the chisel across the entire bottom matrix and push upwards. Change where you press upwards so you go all the way around the top matrix as the parts are more stuck on one side than the other.
Important: The tool must not scratch the inside of the matrices, as they could be damaged.
Click here to watch a video of the process

Snabbinfo

  • Removes stuck badge components
  • Tool for badge machines
  • Used for MULTI and PRO
  • Chisel
